Connector Type : CCS2
Key Features:
- Modular design
- Multiple safety protections
- Flexible load distribution
- An advanced charging control system
- Payment methods: Support OCPP platform/scanning code
- Screen: 7 inch LCD color display touch screen with LED indicator lights.
- Production level: IP54
- Communication interface: Ethernet 4G
- Number of Guns: single
Product Description

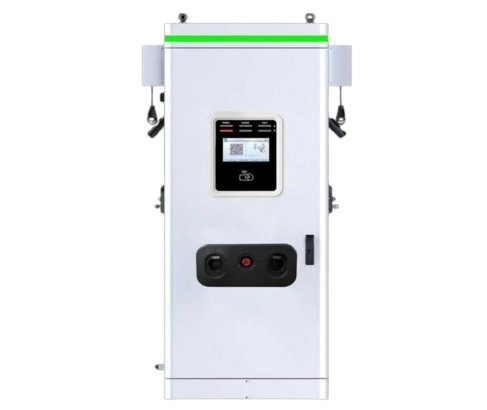

DOER 60kW DC charger is a high-power DC distributed charger. It supports a new DC charging module, with a maximum charging power of 60kW. It is designed to meet the charging needs of electric vehicles with larger battery capacities and long-distance driving demands.
| Model | Doer (60 kW) |
|---|---|
| Input Voltage | 400 VAC +/- 10% |
| Output Rating | 60 kW |
| Output Current | 250A |
| Connector Type | CCS2 |
| Communication | WiFi/4G / Bluetooth |
| Protocol | OCPP 1.0 J |
| Start Mode | App / RFID / Plug & Play |
| Installation | Wall Mount / Stand Mount |
| Operating Temperature | -25 °C to +50 °C |
| Work Humidity | 5%-95% |
| Work Altitude | <2000 m |
| IP Grade | 54 |
| IK Grade | 8/10 |
| Network Type | TT/TN |
| Leakage Protection | RCD TypeA + DC6mA |
| Certification | ROHS, IS 17017-1/21,TUV, CE, CB |
Plug And Charge
Swipe Card
APP
Voice Control
